Bansal Earthron · Rods & Electrodes

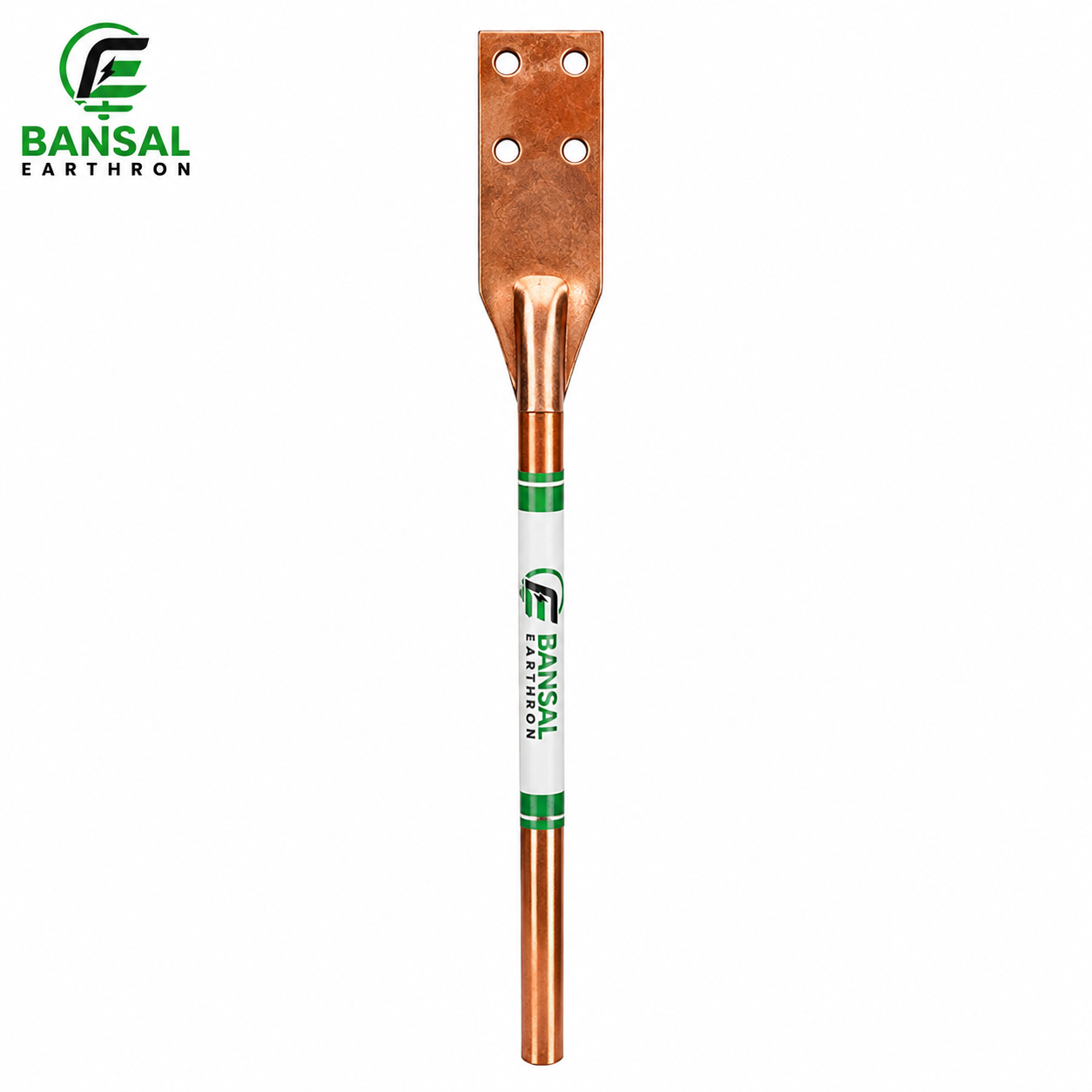

Copper Bonded Rods
Model 17.2 MTPBR
1 to 3 Meter
Copper
Superior earthing performance, long-term durability. Bansal Earthron offers a broad range of copper bonded rods across different sizes, built for industrial installations that need consistent low resistance with minimal maintenance.
Each rod bonds a molecularly fused copper layer over a high-tensile steel core, so it drives into hard or rocky ground without the copper cracking, peeling, or wearing off over years underground.
Enquiry NowProduct Details
Model Number
17.2 MTPBR
Brand
Bansal Earthron
Single Piece Length
1 to 3 Meter
Material
Copper
Specifications
| Pipe Size | Inner Strip Size | Length | Terminal Size | Terminal |
|---|---|---|---|---|
| 50 mm | 25 × 3 (Copper) | 4 Mtr | 50 × 6 | Copper |
| 50 mm | 25 × 2 (Copper) | 4 Mtr | 50 × 6 | Copper |
| 50 mm | 50 × 4 (Copper) | 5 Mtr | 50 × 6 | Copper |
| 50 mm | 25 × 5 (Copper) | 6 Mtr | 50 × 6 | Copper |
